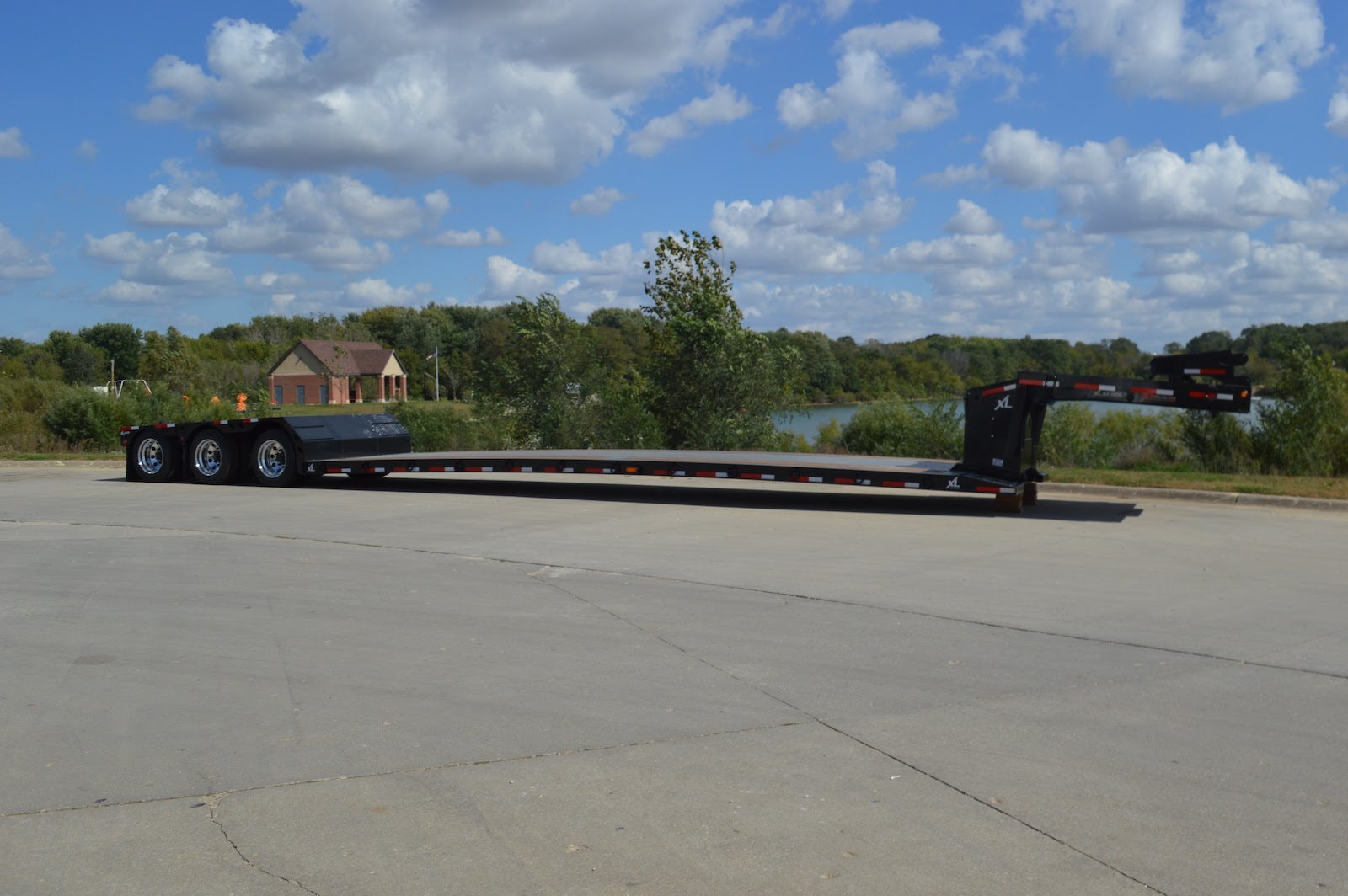

The XL 80 MiniDeck Hydraulic Detachable Gooseneck (HDG) lowboy trailer has a loaded deck height of 12 inches with 4 inches of ground clearance. The capacity rating is 80,000 pounds overall and 80,000 pounds in 16 feet concentrated.
The trailer, comprised of T1 flange and 80K web, has an 11-foot long full-width platform with a low-profile hydraulic neck. A Honda Power 13-horsepower unit allows the user to raise and lower the neck into one of the five ride-height positions. A 36-inch flip neck extension is for use with a four-axle truck.
The trailer’s three-beam design uses an 8-inch-tall center box beam. Junior I-beams measuring 4 inches on 18-inch centers join the box beam and the side rails. The design has steel over the center deck and apitong decking in the outer bays for traction when loading.
The 48-foot long trailer offers 28 feet in the well for maximum loading area.
