    Doosan DL420 Wheel Loader

    May 30, 2012

    New Tier 4-Interim, 354-horsepower diesel on the DL420 wheel loader uses SCR and DEF and increases fuel efficiency by as much as 16 percent over its predecessor. Auto-idle features lessens noice and saves fuel by idlings down to 750 rpm when inactive for 10 minutes. The 5.5-cubic-yard loader has a breakout force of 47,210 pounds; and full-turn tipping capacity of 35,310 pounds. Operators can set upper and lower limits for both the lift arm and bucket stop positions.

    Related To: DEVELON

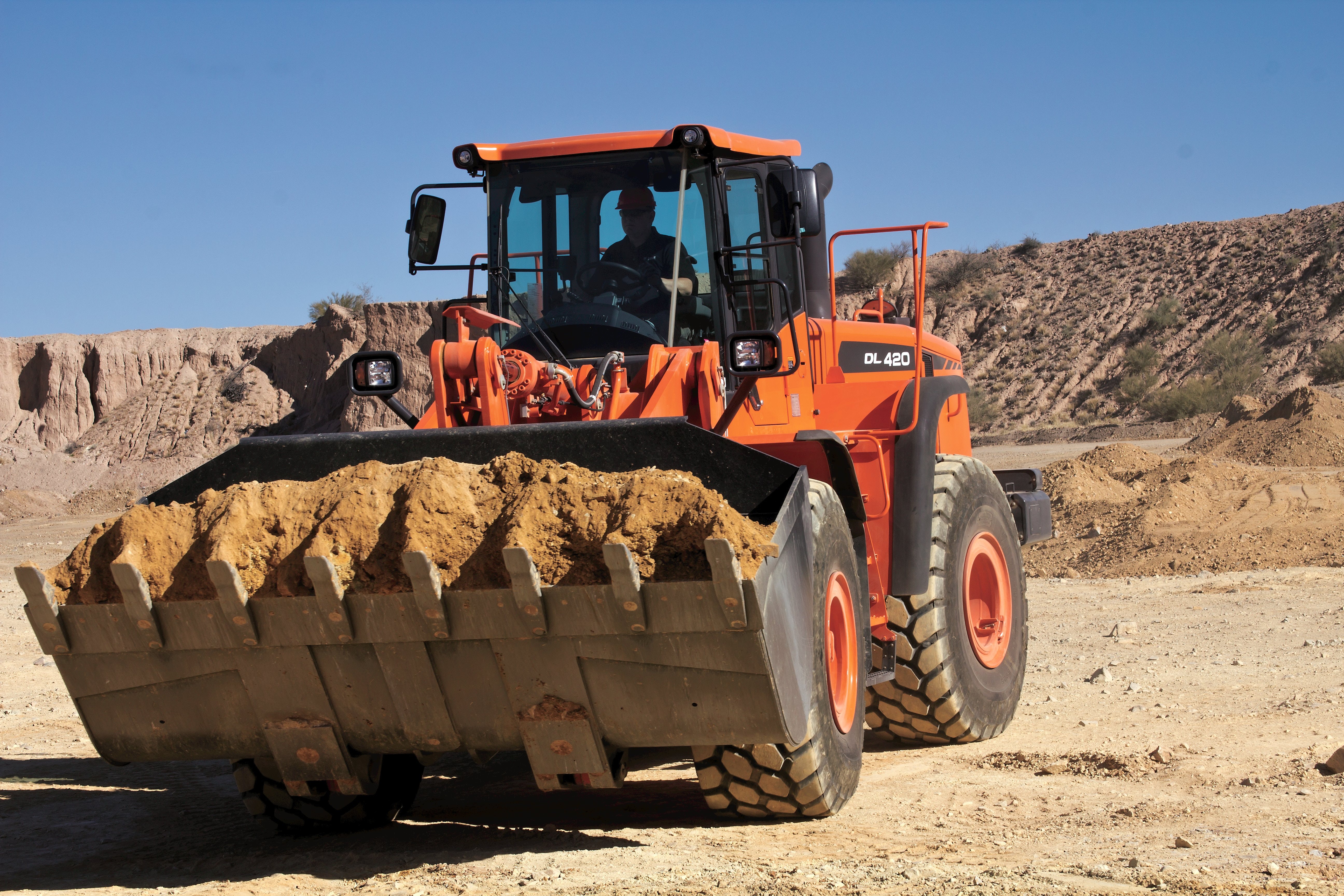

    1654786402855 Doosan Dl420 Wheel Loader

    New Tier 4-Interim, 354-horsepower diesel on the DL420 wheel loader uses SCR and DEF and increases fuel efficiency by as much as 16 percent over its predecessor. Auto-idle features lessens noice and saves fuel by idlings down to 750 rpm when inactive for 10 minutes. The 5.5-cubic-yard loader has a breakout force of 47,210 pounds; and full-turn tipping capacity of 35,310 pounds. Operators can set upper and lower limits for both the lift arm and bucket stop positions. Automatice reversing cooling fan can be set to run in reverse on a preset time frame, or it can be switched to reverse from the cab. An hydraulic locking front differential is optional, as is a torque converter lockup clutch. High-lift configuration extends the dump height 20 inches, to 12 feet 1 inch. Comes with Doosan 48-hour parts guarantee.

    Doosan DL420 Wheel Loader Specifications

    • Horsepower: 354
    • Operating weight: 50,900 pounds
    • Bucket capacity: 5.5 cubic yards
    • Dump height: 10 feet 1 inch
    • Breakout force: 47,210 lb.-ft.
