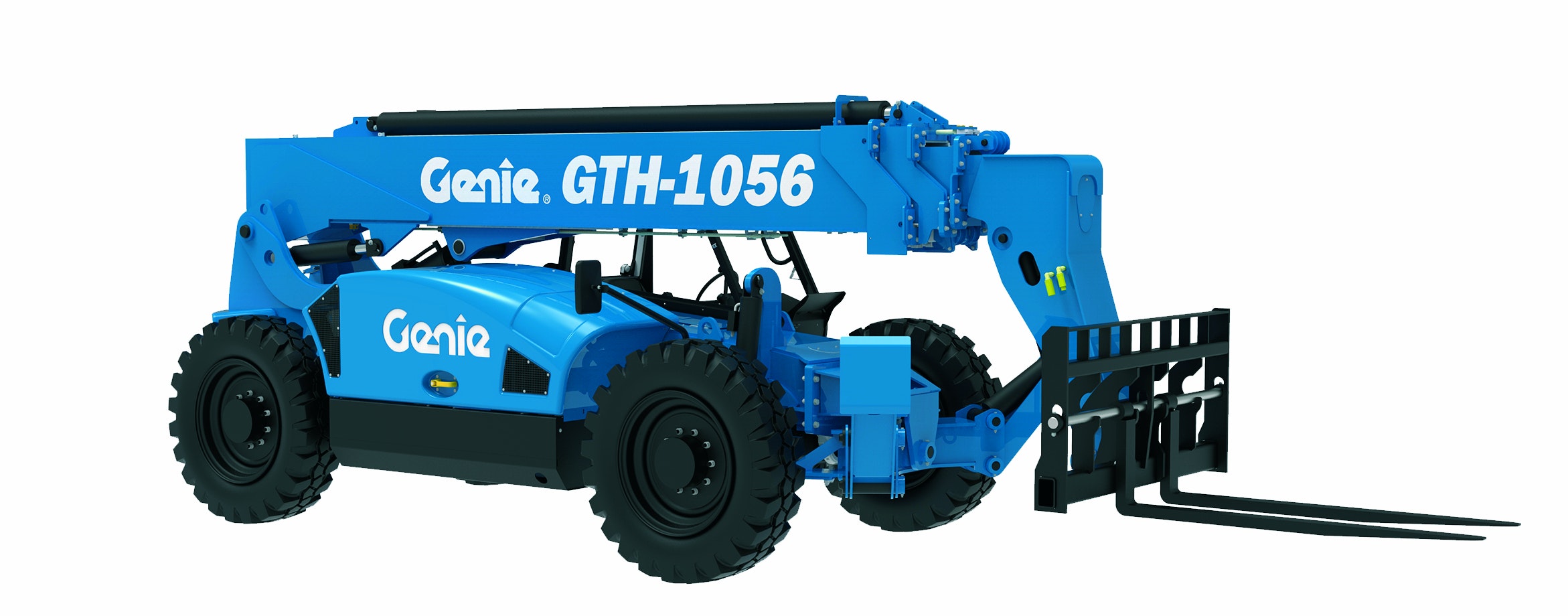

The Genie GTH-1056 telehandler has a 10,000 pound lift capacity. The handler is able to lift 5,000 pounds at maximum height of 56 feet, 7 inches, and 3,000 pounds at maximum reach of 42 feet. The boom with mid-pivot point uses a single lift cylinder.
Owners can choose to power the machine with a 120 horsepower Deutz engine with four-speed powershift transmission, or a 74 horsepower Deutz Tier-4 engine with 3-speed powershift transmission or with Continuously Variable Transmission (CVT).
The 120 horsepower powershift, which delivers 23,110 pounds of drawbar and 18 mph drive speed, is best for customers with dedicated operators working in applications where maximum power and speed is needed every day.
The telehandler also features Genie’s Enduro A/T tires as standard with a hybrid, all-terrain tread design. The GTH-1056 delivers power to the wheels through limited slip differential on both the front and rear axles, which automatically shifts torque to wheels that are slipping. In addition, these axles are free of hydraulics, reducing maintenance and repair costs.
The design of the GTH-1056 also improves rear visibility for operators via improved hose routing, chain retention and slide-in wear pads.
