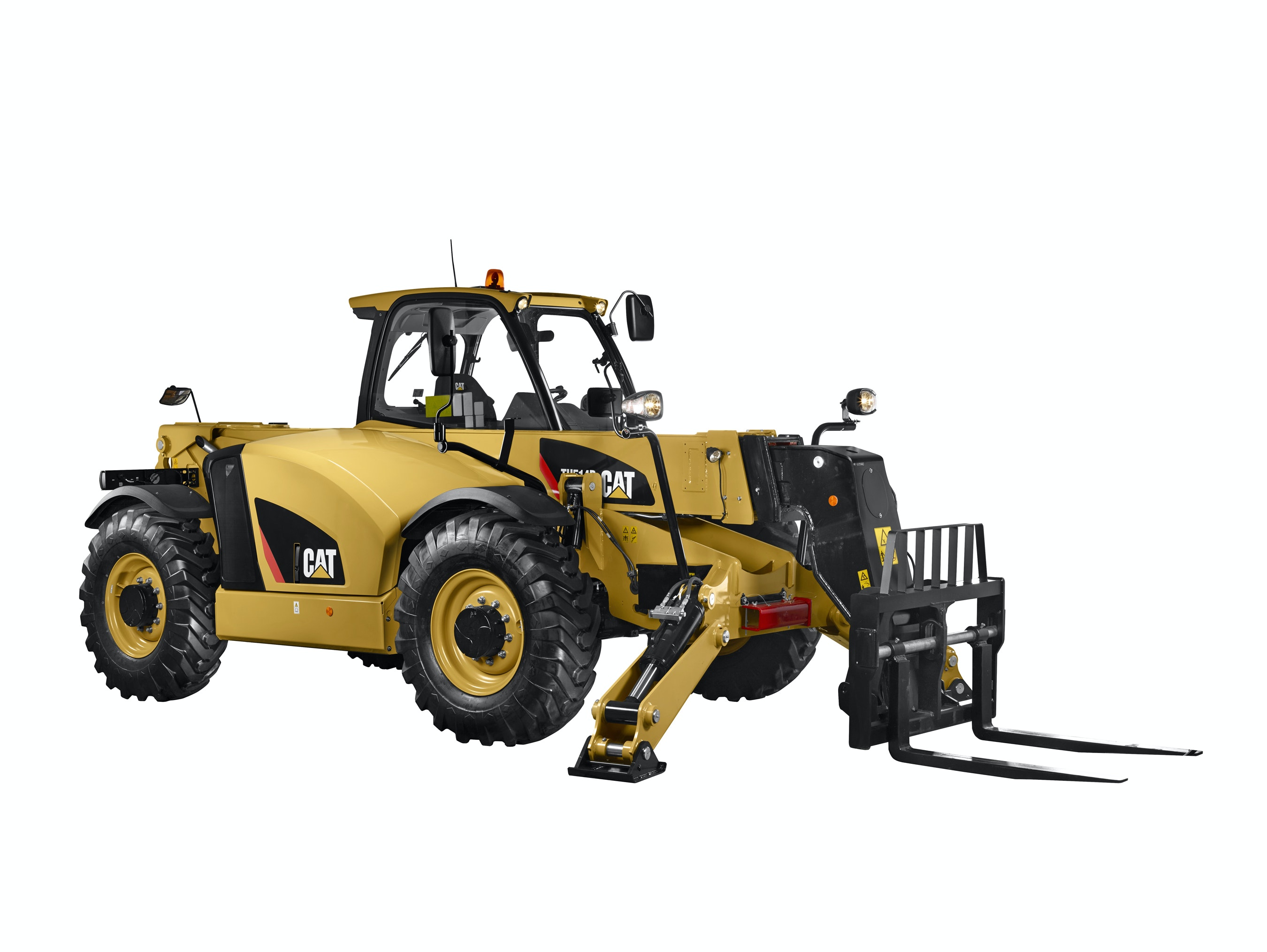

The TH514D telehandler has a rated load capacity of 11,021 pounds that it can lift to 45.5 feet. It is powered by a T4-F 100-horsepower C3.4B engine, and has an operating weight of 26,530 pounds.
It has a heavy-duty, 4F/3R power-shift transmission; and the four-wheel-drive system uses heavy-duty axles with planetary-reduction hubs, front limited-slip differential, and dual-axle braking. Service brakes are the oil-immersed, multidisc type on both axles, and the manually actuated parking brake works with the front-axle brakes.
The closed-center, load-sensing hydraulic system uses a variable-displacement, axial-piston pump and flow-sharing valves. The ride-control system dampens boom movement when traveling in rough terrain, and the boom-float system allows the boom to automatically follow the contour of the terrain. ailability and specifications.
