Manitou MT Series Premiere Telehandlers

MT Series Premiere telehandlers includes four models: MT 1440, MT 1840, MT 1840A and MT 1840H. “A” designates aerial work platform capability; “H” designates hydrostatic transmission. Lift capacity is 9,000 pounds with lift heights of 44 feet 4 inches for the MT1440 and 57 feet 7 inches for the MT 1840s. Frame leveling and front stabilizers are standard. The telehandlers have 102-horsepower Perkins Tier 4-Interim engines that deliver 310 lb.-ft. of torque. Manitou differentiates these machines from it MT series. Powershuttle transmission has a 4-speed gearbox, and the units have 4- and 2-wheel steering as well as crab steering. Overall height is 8 feet 1 inch with a width of 7 feet 9 inches.

Manitou MT Series Premiere Specifications

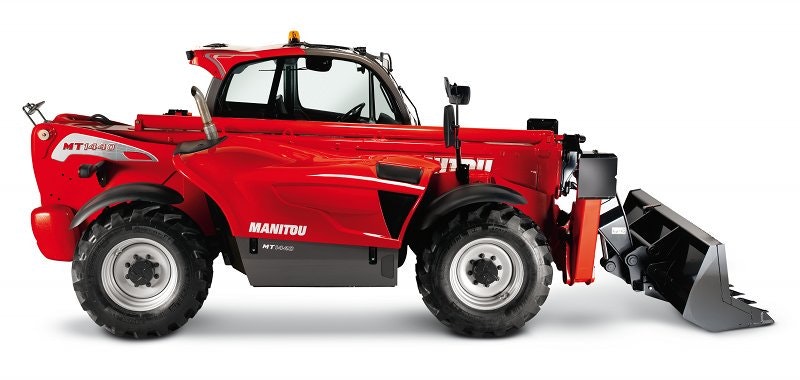

MT 1440

• Rated lift capacity: 9,000 pounds
• Max lift height: 44 feet 4 inches
• Power: 102 horsepower
• Max forward reach: 31 feet
• Turning radius: 13 feet 1 inch

MT 1840

• Rated lift capacity: 9,000 pounds
• Max lift height: 57 feet 7 inches
• Power: 102 horsepower
• Max forward reach: 42 feet 11 inches
• Turning radius: 13 feet 2 inches
