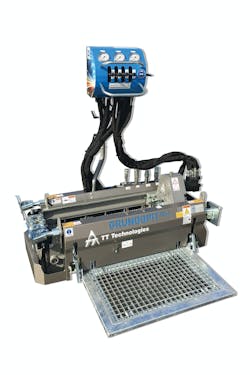

The pit-launched Grundopit mini directional drill is designed for tight working conditions. It measures 54 inches long, 43 inches wide, and 57 inches tall. It has 13,489 pounds of thrust and pull back and 553 lb.-ft. of torque with bore length up to 150 feet.
A patented instant plug-in lock holds the drill stem in place. The instant plug-in lock system allows new drill stems to be added easily by engaging the new drill stem at the rotational motor.
Components include a two-part bore rig, patented drill stem plug in, 30 drill stems, bore head with angled steering surface, backreamer and swivel coupling, hose package and power pack.
