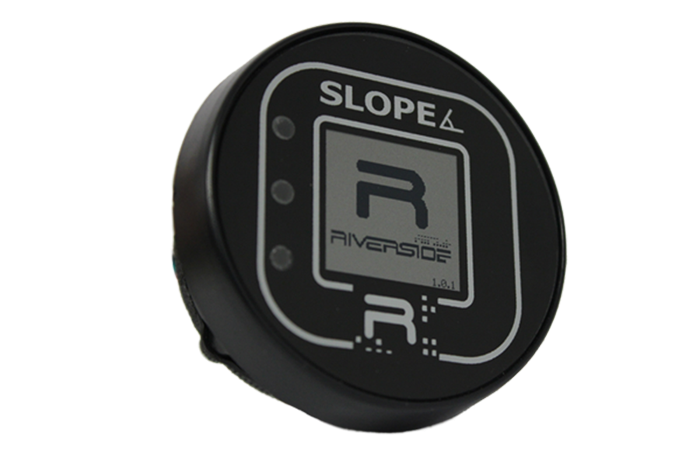

Riverside Manufacturing MPIC-Slope Slope Gauge for Harsh Environments

The MPIC-Slope is a digital slope gauge designed for harsh environments that provides real-time pitch, roll, slope, and/or grade data in direct sunlight or minimal light environments.

The MPIC-Slope incorporates MEMs technology, utilizing a 3-axis accelerometer and gyroscope to provide vibration and acceleration compensated output utilizing a sensor fusion algorithm. The MPIC-Slope has an operating temperature range of -20°C to +70°C, operating voltage range of 5 to 28vdc, IP67 environmental rating, reverse polarity protection, back feed protection, and under/over voltage protection. One of the MPIC-Slope’s main features, gesture control, allows the user to select and scroll through various screens with a hand swipe. The MPIC-Slope comes with a computer program that allows the user to view, save, and print the last 50 hours of data saved on the device.
