Liebherr LH 30 M & LH 60 M Material Handlers

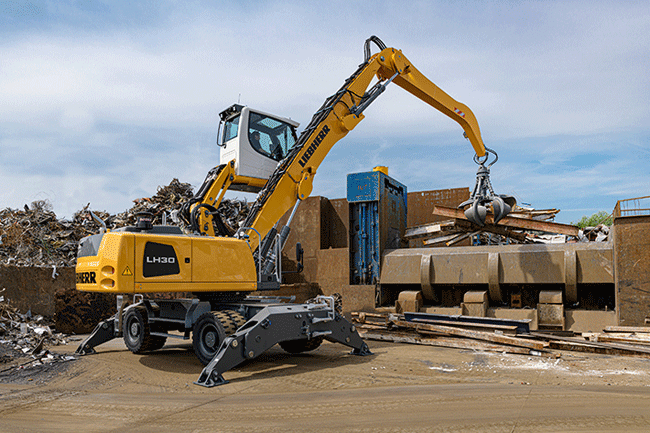

The LH 30 M Industry Litronic material handler has an operating weight between 58,400 and 64,200 pounds and a 188-horsepower engine. The separate hydraulic pump in the closed slewing circuit only supplies hydraulic fluid to the swing mechanism. Maximum delivery volume is available for swiveling the upper carriage.

The LH 60 M Industry Litronic, designed for heavy-duty scrap handling, has an operating weight between 121,300 and 134,500 pounds. Engine output is 190 kW / 255 horsepower. The hydraulic cab elevation, which can be adjusted for different loading situations, gives the driver a clear view of the working area. Additionally, installed cameras allow monitoring of the rear and side of the machine.

The machines can be used in scrap operations, waste recycling, and material handling.

Wide steps, gangways, and platforms allow access to all maintenance points and ensure easy and safe entry and exit. Equipment such as cab protective grid, impact-resistant laminated safety glass, and piston rod protection for cylinders are specifically developed for the tough use in scrap handling.

Liebherr also offers multi-tine grapples for several applications, and a Liebherr quick coupling system.
