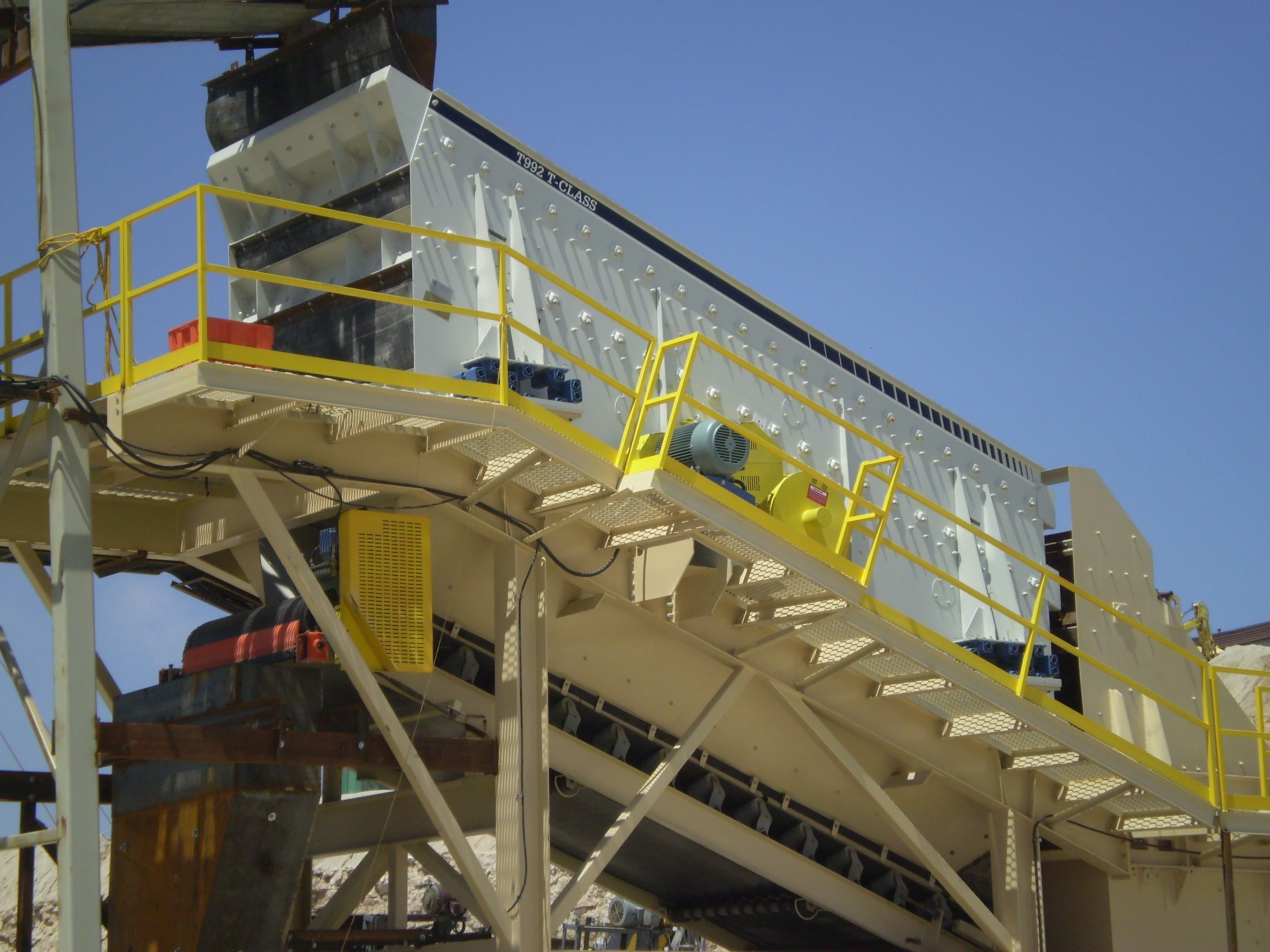

Haver & Boecker Tyler Vibrating Screen

Tyler T-Class vibrating screen has a cut size range of 20 mesh to 6-inch minus.

Machines range in size from 4x8- to 8x20-foot, as well as 8x24-foot with a twin shaft. The standard model is inclined at 20 degrees, but variations between 15 and 25 degrees are also available.

The T-Class body has nonwelded side plates, and the shaft housing includes extra-wide flanges to allow Huck bolting through the tube housing flange, side plate, and side plate stiffener.

Cambered deck has the Ty-Rail quick-tensioning system, which cuts screen media change-out time by about 50 percent. The system includes two tension rails, eight angle boxes, and eight bolts. To remove the tension rails, an operator simply loosens the bolts on each, shifts the angle box gates up, and lifts the rail and bolts out as one piece.
