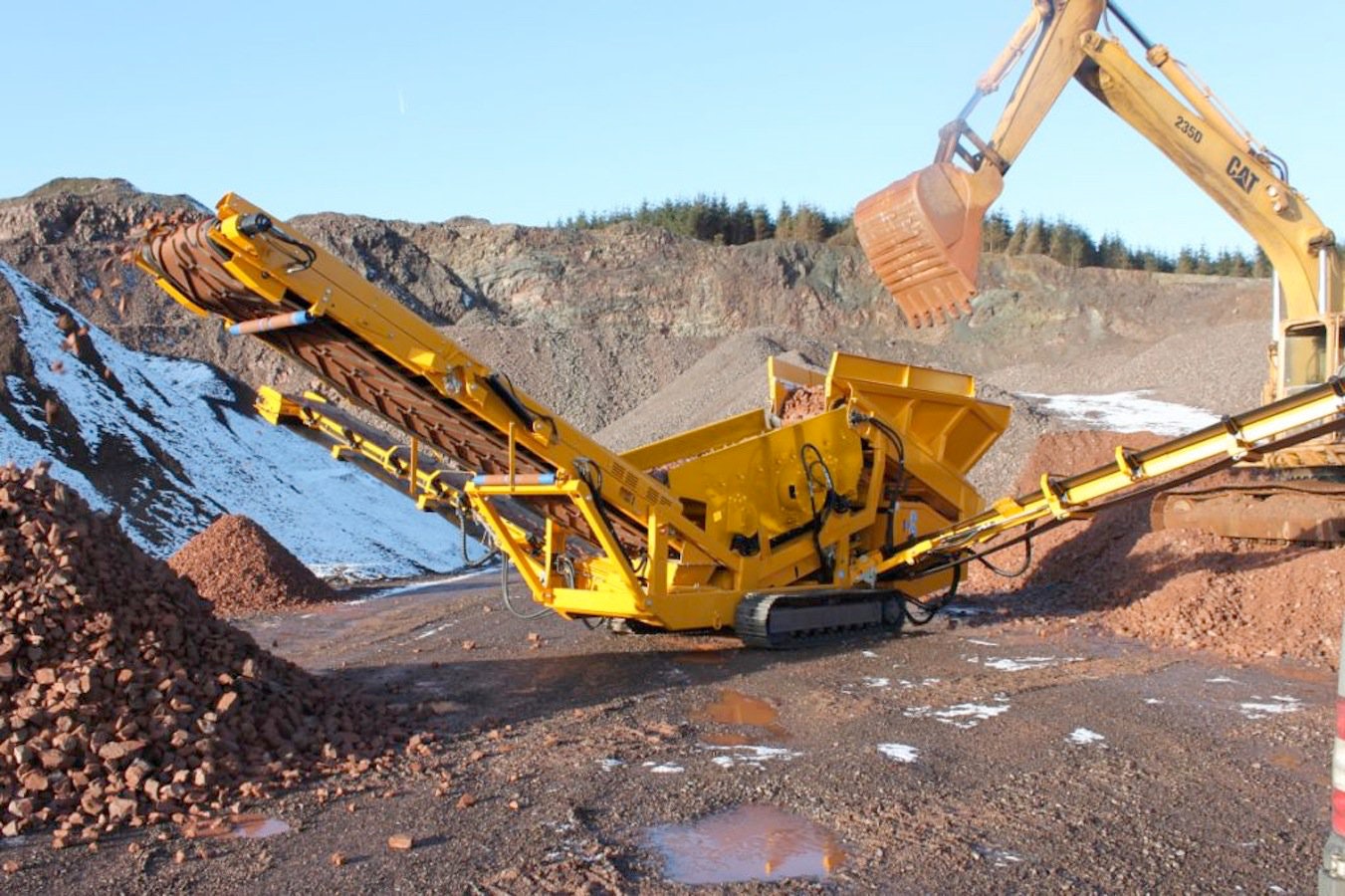

IROCK TS-409 Track Screening Plant

IROCK Crushers TS-409 open style feeder track screening plant can be used for  materials such as topsoil, mulch, sand and gravel, asphalt, coal, limestone and demolition debris. It is powered by a 66.2-horsepower Deutz engine and is capable of processing materials at a rate of up to 300 tons per hour. The equipment can be loaded onto a trailer to move from site to site and has a set-up time of 10 minutes or less.

The TS-409 has an open-style hopper feeder with a 5.02-cubic-yard capacity and a 42-inch-wide belt feeder conveyor. Capable of accurately and consistently sizing materials up to 12 inches in size, It has two 9x4-foot decks for a total of 72 square feet of screening area, and can handle materials up to 12 inches. The unit has 400-mm-wide crawler tracks and an onboard 42-inch oversized Chevron belt conveyor with a stockpiling height of 11.5 feet. The entire working unit measures just over 41 feet long.
