Doosan Portable Power Evolution Air Compressors

June 8, 2021

The Evolution Series of Doosan air compressors includes four models delivering between 100 and 200 psi of operating pressure.

Three of the Doosan Portable Power models have Doosan FlexAir technology, including two 185-cfm models: P185-HP150 and XP185-VHP165. The P250-MHP185, a 250-cfm machine, also has the technology.

As the hose connecting a pneumatic tool an air compressor becomes longer, air pressure at the tool drops. FlexAir allows the operator to increase pressure to compensate for the loss. The XP185-VHP165 delivers up to 150 psi with a rated pressure of 100 psi; the P250-MHP185, also rated at 100 psi, delivers up to 175 psi. The P185-HP150 has a rated operating pressure of 125 and can deliver up to 200 psi.

Operators select the psi of the output air electronically using the control panel on the Doosan air compressors.

Doosan Evolution Series Specs

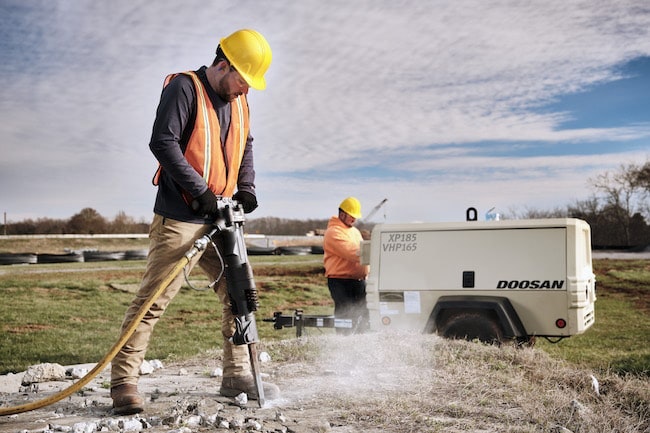

XP185-VHP165

  • Rated free air delivery: 185 cfm
  • Rated operating pressure: 100 psi
  • FlexAir pressure rating: 101-150 psi

P185-HP150

  • Rated free air delivery: 185 cfm
  • Rated operating pressure: 125 psi
  • FlexAir pressure rating: 126-200 psi

P250-MHP185

  • Rated free air delivery: 250 cfm
  • Rated operating pressure: 100 psi
  • FlexAir pressure rating: 101-175 psi

C185

  • Rated free air delivery: 185 cfm
  • Rated operating pressure: 100 psi
