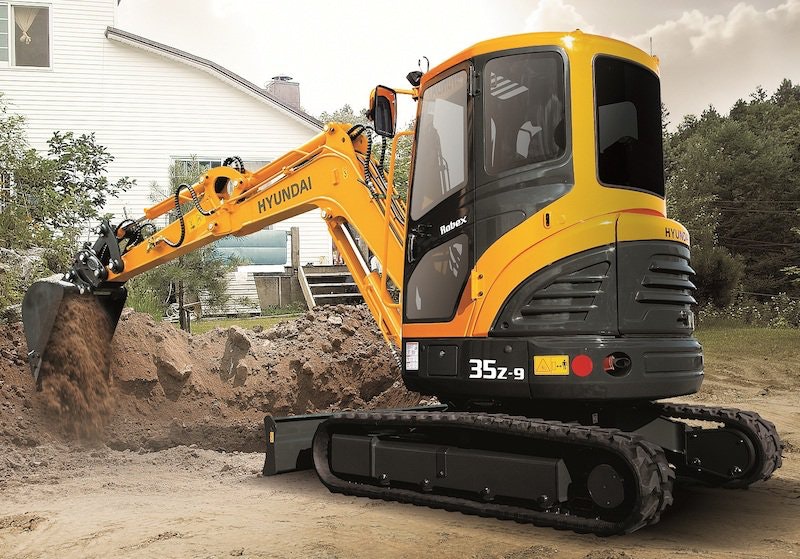

The R35Z-9 excavator has an operating weight of 8,050 pounds and is powered by a 26.5-horsepower Yanmar 3TNV88 engine that is certified for Tier 4. Maximum dig depth 10 feet 4 inches, bucket digging force is 7,050 lb.-ft., and tail-swing radius is 2 feet 10 inches. Optimized matching between the joystick and main hydraulic control valve provides control and smooth operation, the company says. An arm flow summation system saves energy, reduces cavitation and increases speed. Lubricated bushings extend lube intervals to 250 hours. Hydraulic filters provide 1,000 service hours, and hydraulic oil 5,000.
Hyundai R35Z-9 Excavator Specs
- Operating weight: 8,050 pounds
- Bucket breakout force: 6,280 pounds
- Maximum dig depth: 10 feet 4 inches
- Engine: 26.5 horsepower
- Bucket capacity: 3.78 cubic feet
