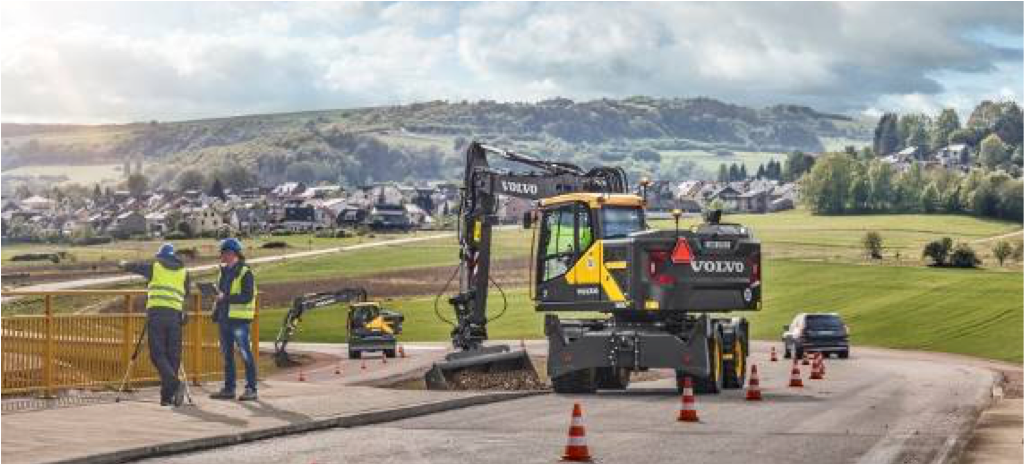

Volvo EWR150E, EWR170E, EW220E Wheeled Excavators

Three wheeled excavators include the 16.9-ton EWR150E, the 19.7-ton EWR170E, and 23-ton EW220E.

The EWR150E and EWR170E are short-swing units, offering tail swing radii of 67.7 inches and 70 inches, respectively. The EW220E is a conventional swing excavator. Each is powered by a Volvo Tier 4-F engine.

The Attachment Management System stores flow and pressure settings for up to 20 attachments, and a Steelwrist tiltrotator is an option. It allows for 360-degree rotation, and 45-degree tilt left or right.

Key specifications

EWR150E

• Engine: Volvo 4-cylinder Tier 4-F
• Tail swing radius: 67.7 inches
• Breakout force: 24,390 lb.-ft.
• Max. digging reach: 28'5"
• Max. digging depth: 16'8"
• Operating weight: 16.9 – 19.7 tons

EWR170E

• Engine: Volvo 4-cylinder Tier 4-F
• Tail swing radius: 70 inches
• Breakout force: 28,330 lb.-ft.
• Max. digging reach: 30'3"
• Max. digging depth: 18'6"
• Operating weight: 19.7 – 21.1 tons

EW220E

• Engine: Volvo 6-cylinder Tier 4-F
• Breakout force: 29,680 lb.-ft.
• Max. digging reach: 33'4"
• Max. digging depth: 20'9"
• Operating weight: 23 – 26.8 tons
