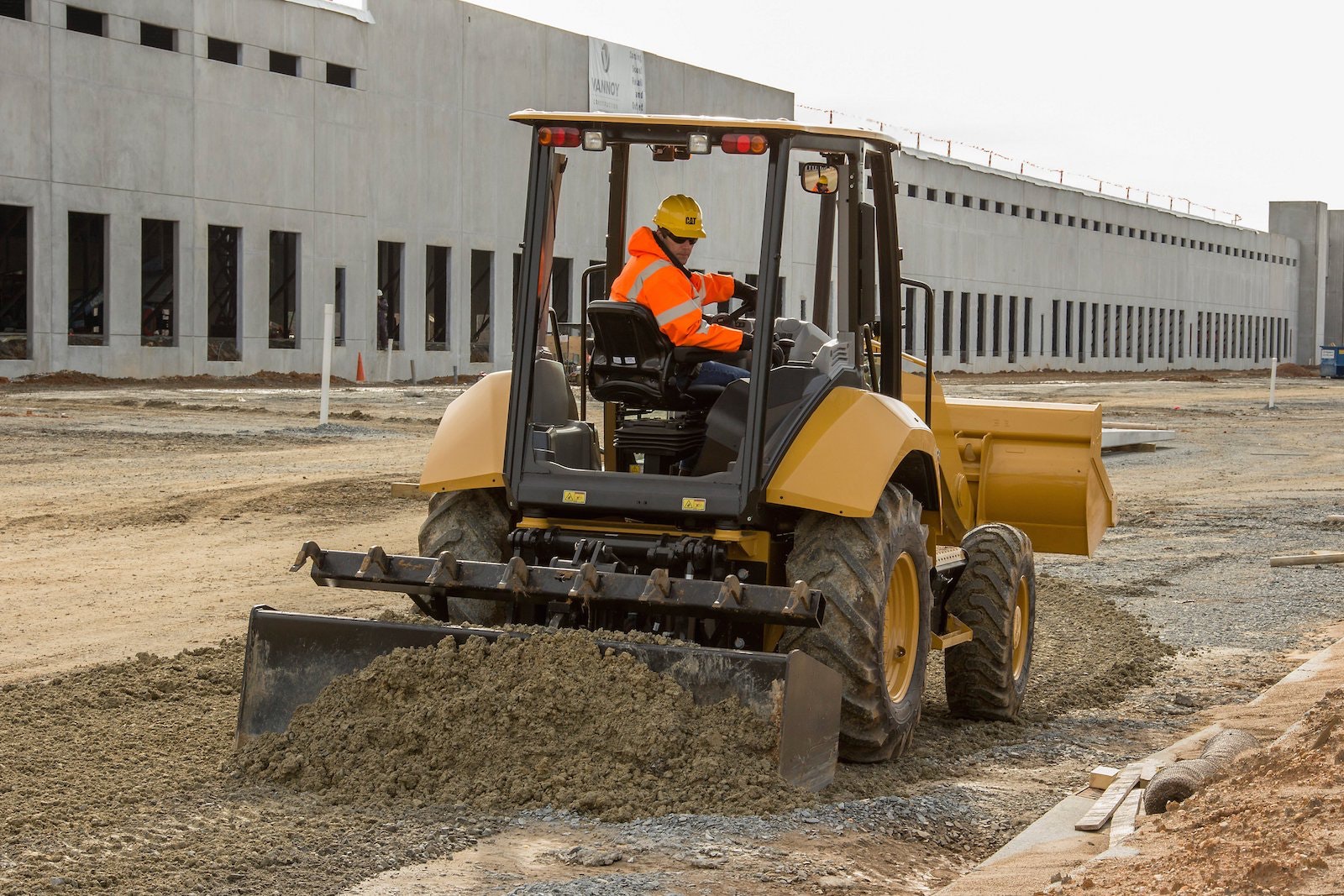

The 415F2 Industrial Loader Tractor combines the basic design of the Cat 415F2 backhoe-loader with purpose-built components designed for industrial loader applications, such as new pilot controls, three-point hitch, and a box blade scraper.
The tractor has standard five-function rear valve and three-function loader valve, dual-location differential lock, low-effort pilot-type controls for the box blade scraper, and sealed storage compartment. A security key pad disables the engine, transmission and hydraulic systems at machine startup until a passcode is entered.
The standard three-function loader valve uses mechanical controls, with single-lever control for models with a general-purpose bucket and two-lever control for models with a multipurpose bucket.
The five-function valve for the box blade scraper uses low-effort, pilot-operated controls that feature a conventional operating pattern in a conventional control-console location. The implement hydraulic system, load-sensing with a variable-displacement piston pump, produces a maximum flow of 35 gpm at a relief pressure of 3,336 psi.
The differential lock can be activated either with a floor-mounted button or a button on the loader-control lever.
A Cat C3.4B engine powers the loader at 72 horsepower and meets Tier 4 Final standards with an DPF and DOC. The standard-shift, four-speed transmission has a quick-reversing, powershuttle feature.
Cat 415F2 IL Specifications
- Engine: Cat C3.4B
- Net power; 72 horsepower
- Operating weight: 14,150 pounds
- Loader capacity: 1 cubic yard
- Lift capacity: 6,750 pounds
- Bucket pin height: 136 inches
- Top speed: 23 mph
