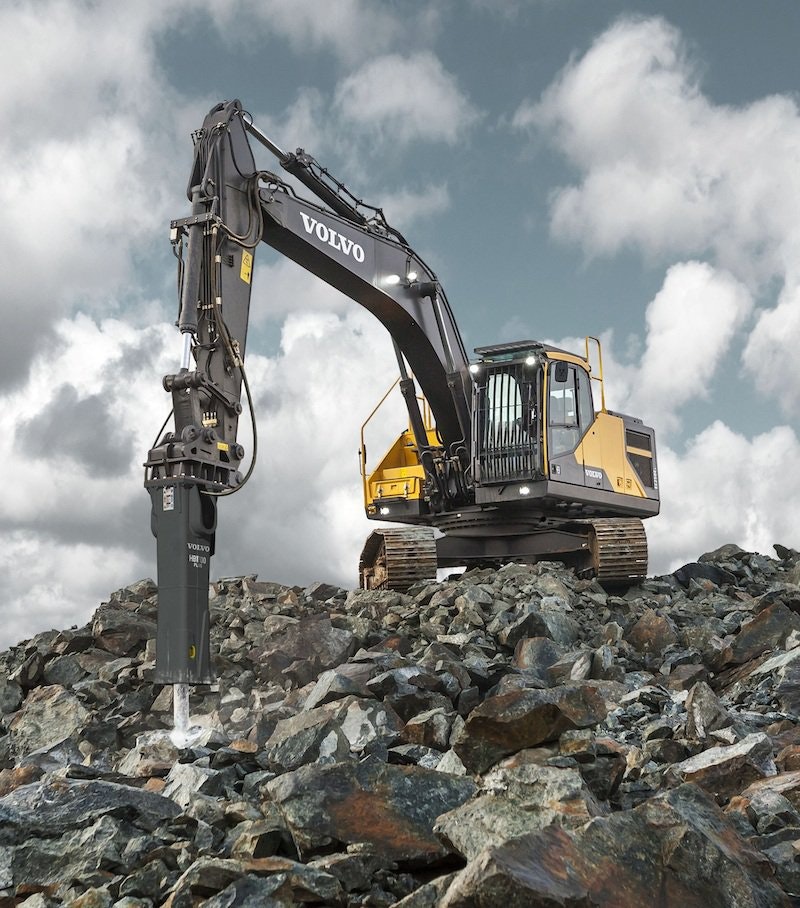

Models EC250E and EC300E crawler excavators have been upgraded with compliant Tier 4-Final Volvo engines. Coupled with the engines, hydraulic system improvements have improved fuel efficiency by 5 percent over predecessor models, Volvo says. ECO mode automatically reduces consumption without loss of performance, and the operator can also manually control flow using the integrated work mode system. Proportional two-pump flow gives the operator better control, according to the company. The attachment-management system stores the settings for up to 20 different attachments, and can also store rated flow and relief pressure in some cases. The After Treatment Control Module automatically controls, monitors and diagnoses after treatment. In the cab, a keypad allows the operator to navigate through the LCD monitor and activate machine functions.
Volvo EC250E, EC300E Specifications
EC250E
- Engine: Volvo D8J
- Rated output: 213 horsepower @ 1,800 rpm
- Breakout force: 34,270 lb.-ft.
- Max digging depth: 23 feet 2 inches
- Lifting capacity along undercarriage: 20,540 pounds
- Operating weight: 56,430 - 63,790 pounds
EC300E
- Engine: Volvo D8J
- Rated output: 240 horsepower @ 1,800 rpm
- Breakout force: 37,660 lb.-ft.
- Max digging depth: 24 feet 1 inch
- Lifting capacity along undercarriage: 24,360 pounds
- Operating weight: 64,720 – 72,260 pounds
