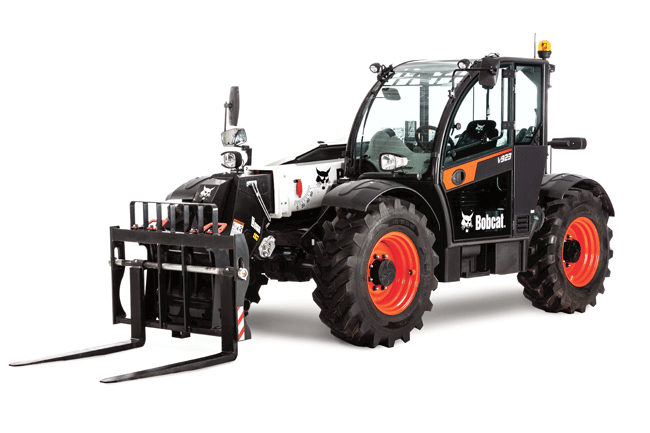

Bobcat V923 Versahandler telehandler lifts up to 9,041 pounds. It has a maximum lift height of 23 feet and maximum reach of 13 feet 6 inches. With an operating weight of 18,158 pounds, the telehandler is powered by a 130-horsepower Bobcat diesel engine.
A Z-Bar boom linkage improves over the predecessor with greater range of bucket rotation, increased dump angle at full height, and increased breakout force.
A heavy-duty hydrostatic transmission delivers a 0-25 mph stepless driving experience, quick power when needed, and high wheel torque for the Bobcat V923. The low-profile, extendable boom gives operators the power to access a wide range of lift heights and reach lengths with increased visibility to the right side of the machine.
The load sense hydraulic system is designed for faster boom speeds and heavier lifting than the predecessor, and a patented hydraulic lift system provides advanced high-flow technology to optimize lift capabilities while providing high-speed movement. The heavier-duty lift cylinder allows for a rated operating capacity of 9,000 pounds and improved lifting performance.
The Bobcat V923 telehandler has a sealed engine compartment that helps shut out dust and debris, ensuring long component life. The radiator, oil cooler, and in-take air coolers are mounted side by side, carefully located to receive the same quality and temperature of air, which provides efficient, consistent cooling ability.
An automatic reverse cooling fan gives telehandler operators the ability to keep the radiator area cleaner for longer, extending productivity and uptime while reducing the immediate need to clean debris by hand.
Three steering types and four travel speeds include all-wheel steer, front-wheel steer, and crab steer. Three travel modes include two-speed travel option that offers two speed ranges, each with its own high and low setting; speed management, which adjusts travel speed independently from engine speed; and inching control, which reduces drive speed without reducing power to the attachment.
A boom cushioning suspension system makes it easier for operators to handle the load, providing a smoother motion as the attachment angles to its minimum or maximum pitch, or when the boom reaches full retraction. Activating ride control reduces material spillage and enables operators to travel at faster speeds for increased productivity. Thanks to its dampening effect, this feature also increases comfort by offering a smoother ride when traveling across uneven terrain.
Bobcat V923 Versahandler Specifications
- Horsepower: 130
- Operating weight: 18,158 lb.
- Maximum rated lift capacity: 9,041lb.
- Maximum lift height: 277 in.
- Maximum reach: 162.3 in.
- Auxiliary hydraulic flow: 39.6 gpm
- Travel speed, low (Gear 1): 3.7 mph
- Travel speed, high (Gear 2): 24.5 mph
- Three steering modes: Front, all-wheel and crab
