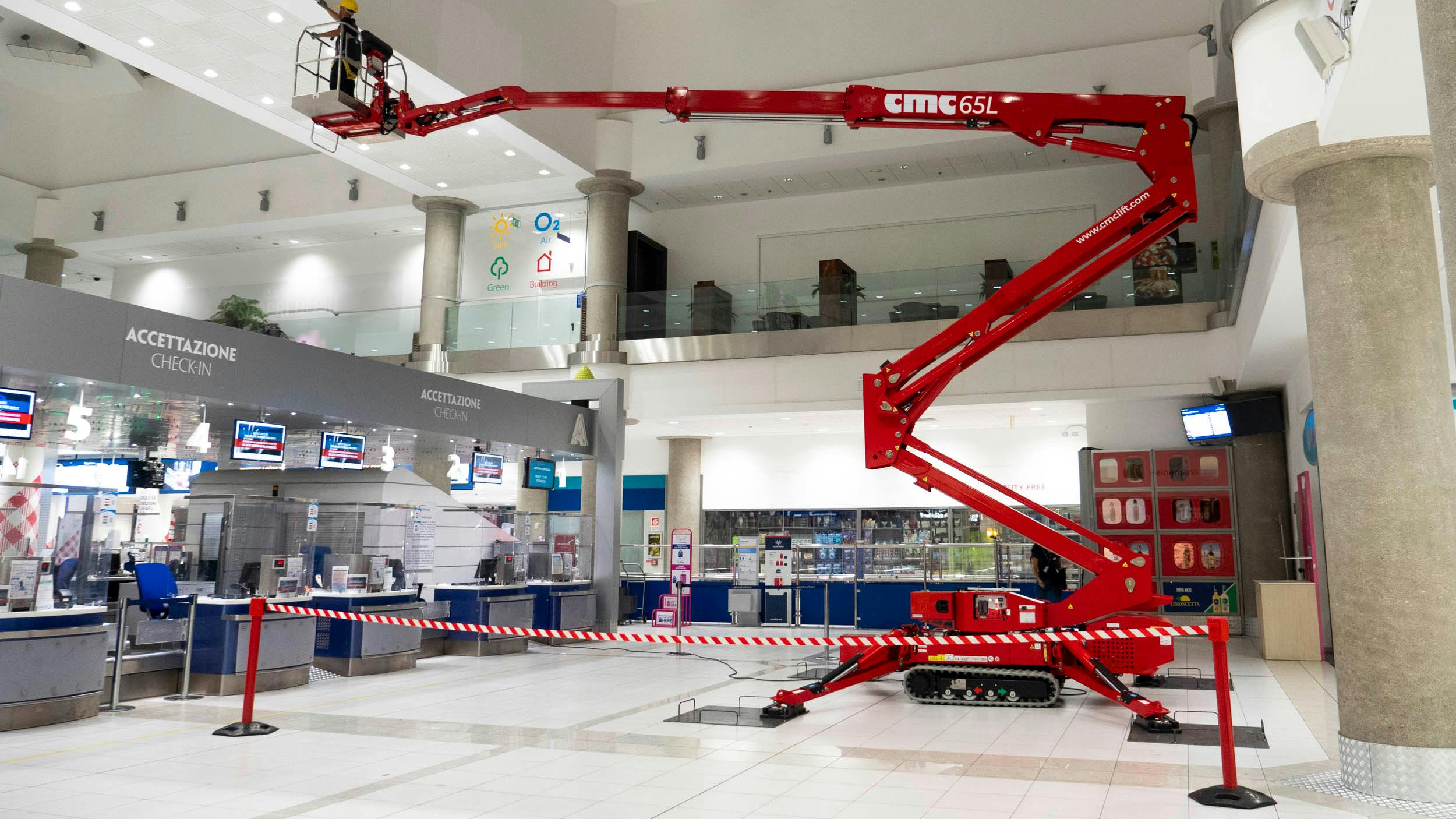

Model 65L CMC work platform has an articulated boom that provides a maximum working height of 65 feet 4 inches with 34 feet of reach. Operating weight is 6,569 pounds. Basket load capacity is 507 pounds, and the lift operates on tracks.
The two-person basket rotates 90 degrees either way, and the turret rotates 180 degrees. The MEWP can pass through a 36-inch-wide opening, self-level on sloped surfaces, and safely reach maximum height in a matter of seconds.
Standard features include proportional hydraulic controls, radio remote controls, and protective covers for the outrigger cylinders. Electric power is available.
CMC 65L Work Platform Specs
- Max. working height: 65’4”
- Max. lateral reach: 34’
- Max. basket load capacity: 507 lb.
- Operating weight: 6,569 lb.
