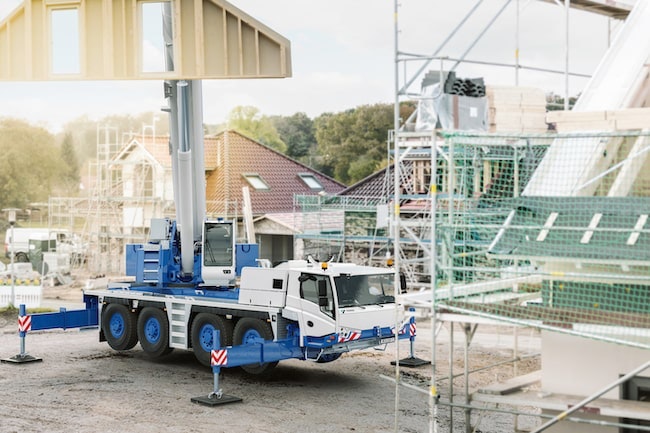

Tadano AC 4.110-1, AC 5.120-1 All Terrain Cranes

Tadano AC 4.110-1 and Tadano AC 5.120-1 all terrain cranes are four-axle and five-axle telescopic boom cranes, respectively. The two cranes share the same boom, and their names have been updated.

With the main boom fully extended, the new boom increases the Tadano cranes’ lifting capacities by 37 percent to 11 tons over the predecessor models ATF-100-4.1 and ATF-120-5.1. It also enables a larger work area with a smaller minimum radius, larger lifting height, and 82-degree boom angle.

An updated main boom extension can be set up more quickly as a result of reduced complexity in the design.

The Tadano AC 5.120-1 crane has a modified wheelbase specifically for the U.S. market, enabling it to conform to current U.S. approval regulations.

Tadano AC 4.110-1 crane specs

• Max. lifting capacity: 110 tons
• Boom: 37.4 - 196.9 feet
• Main boom extension: 12.1/33.1 - 104.7 feet
• Max. tip height: 300.2 feet
• Max. radius: 223.1 feet
• Carrier engine: 456 horsepower
• Superstructure engine: 173 horsepower
• Transmission: ZF TraXon 12.1
• Drive: 8 x 6 x 8 (8 x 8 x 8)

Tadano AC 5.120-1 crane specs

• Max. lifting capacity: 130 tons
• Boom: 37.4 - 196.9 feet
• Main boom extension: 12.1/33.1 - 104.7 feet
• Max. tip height: 300.2 feet
• Max. radius: 223.1 feet
• Carrier engine: 456 horsepower
• Superstructure engine: 173 horsepower
• Transmission: ZF TraXon 12.1
• Drive: 10 x 6 x 10 (10 x 8 x 10)
