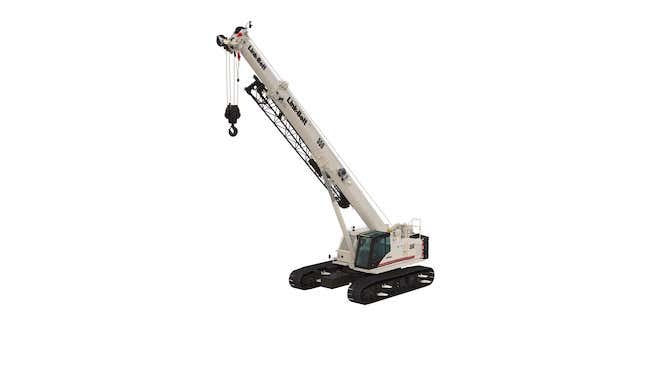

The Link-Belt TCC-550 telescopic crawler crane has a lifting capacity of 55 tons. It has a full-power 36.5-to-115-foot four-section boom with two boom extend modes (EM1 and EM2). The entire boom is greaseless and includes Teflon-impregnated wear pads.
Fly options include a 28.5-to-51-foot two-piece bi-fold lattice fly that is stowable and offsetable to 2, 20, and 40 degrees. Maximum tip height is 165.5 feet.
Textured and slip-resistant paint on all walking surfaces is new and improves footing. The Vision Package includes winch-view camera, rear-view camera, and right-side swing camera. Anchor points are located on the work platform of the TCC-550 for personal fall arrest equipment.
The Link-Belt TCC-550 can work at three different track widths: 15 feet 2.37 inches fully extended; 13 feet 6.11 inches intermediate; and 11 feet 5.24 inches retracted. It has two travel speeds and can travel up to 2 mph.
Standard counterweight package is 25,000 pounds, and the Link-Belt TCC-550 transports in one load while staying under 100,000 pounds.
On the trailer, the TCC-550 travels at a height of 9 feet 10.55 inches and a width of 11 feet 5.24 inches.
Link-Belt TCC-550 Specs
- Lifting capacity: 55 tons
- Boom: 35.6 to 51 feet
- Fly: 28.5 to 51 feet
- Counterweight: 25,000
