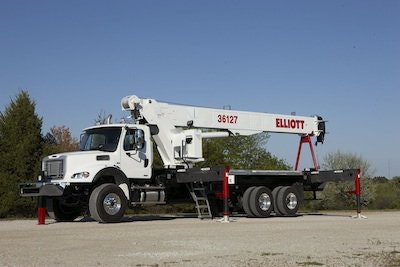

Elliott 36127F Front-mounted BoomTruck

According to Elliott, the 36127F front-mounted BoomTruck provides best-in-class lifting capacity of 72,000 pounds at a 5-foot radius and a maximum boom tip height of 137 feet. It features the company’s exclusive ride-around control console and smooth thumb throttle to give crane operators the smoothest operation possible. The standard unit includes an aluminum bed with wings, a 34-foot-5-inch retracted to 127-foot extended five-section boom, an internal anti-two block system, and an LMI. Out-and-down style outriggers offer mid and full span load charts with a 21-foot maximum outrigger spread. The 36127F fills a void in the BoomTruck line between the 32-ton and 40-ton models.
